UNPLUGGING THE EGR COOLER — 07-24 CUMMINS 6.7L

5 MINACCESSORIES3 STEPS

If you are running emissions-off tuning on a 2007.5–2024 RAM 2500/3500 6.7L Cummins but leaving the EGR cooler in place, unplug these three connectors so the truck throws no warning codes. The supplied plugs cap the open connectors.

Steps

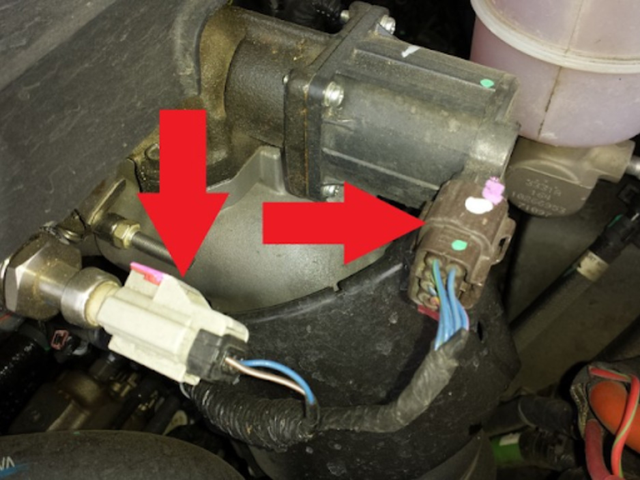

1 Unplug the two connectors in front of the brake fluid reservoir

On the driver side of the engine. Both are arrowed in the photo.

Unplug the two connectors in front of the brake fluid reservoir

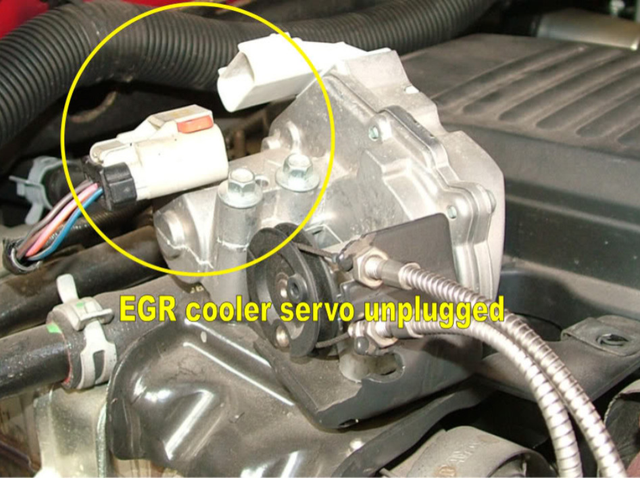

2 Unplug the EGR cooler servo

The connector on the servo by the valve cover, circled in the photo.

Unplug the EGR cooler servo

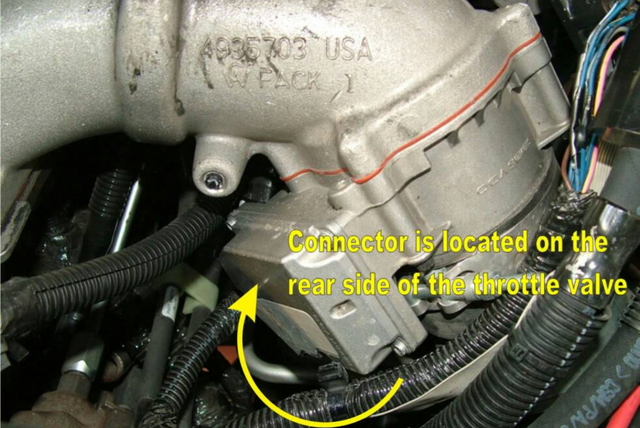

3 Unplug the connector on the back of the throttle valve

It sits on the rear of the throttle valve, pointing toward the engine block. This is the last one.

Unplug the connector on the back of the throttle valve
