EGR DELETE — 11-16 POWERSTROKE 6.7L
Never work on a hot vehicle. Let it cool before starting, and wear eye protection when working on or under it. Not legal for sale or use on pollution-controlled motor vehicles anywhere in the United States. Legal only for off-road competition race vehicles that are not operated on public streets, roads or highways. By installing this product you assume all risk and liability for its use, it is your responsibility to comply with all federal, state and local emissions laws, and it may void the manufacturer's warranty.
Removing the EGR cooler and both EGR pipes on a 2011–2016 Ford F-250/F-350 Super Duty 6.7L Power Stroke, rerouting the coolant with the molded hose, and fitting the pass-through, intake and exhaust block off plates. Where 2015–2016 trucks differ, the step says so. Penetrating spray on every exhaust fastener beforehand makes removal easier. Kit contents: • 1 × EGR cooler pass-through plate • 1 × intake manifold block off plate • 1 × exhaust manifold block off plate • 1 × molded silicone coolant hose • 1 × EGT probe adapter • 2 × large stainless hose clamps • 2 × small stainless hose clamps • 1 × 5/16" brass hose coupler • 1 × 3/8" brass hose coupler • 4 × M6 × 20mm stainless bolts • 3 × M6 × 30mm stainless bolts • 1 × vacuum hose cap • 4 × zip ties
Steps

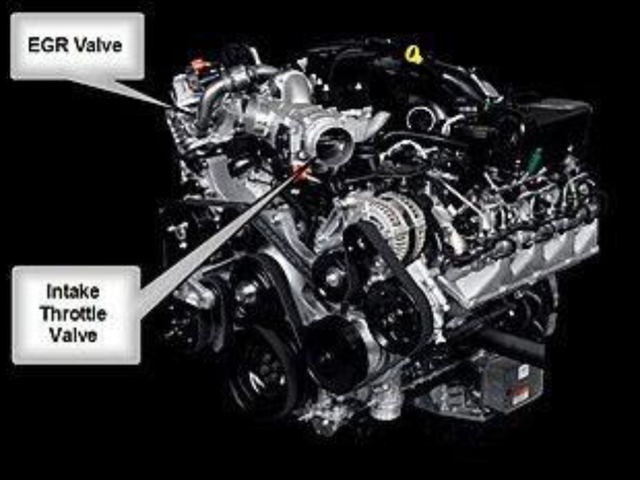

1 Keeping the EGR cooler? Unplug these connectors instead

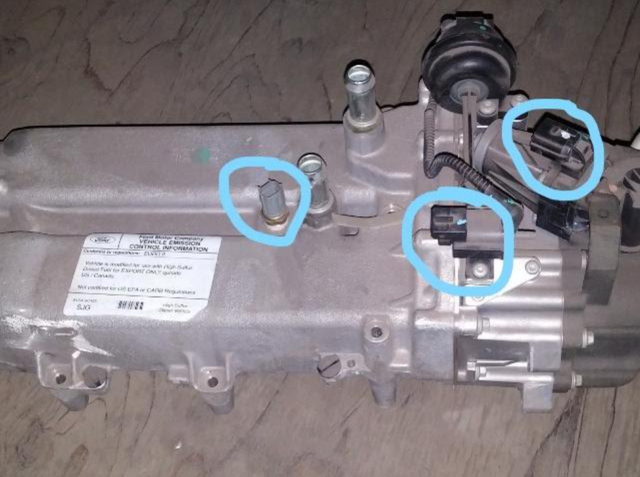

If you are running emissions-off tuning but leaving the cooler in place, unplug the three connectors circled on the EGR cooler, on the passenger side of the engine, so the truck throws no warning codes. Then stop here; the rest of this guide removes the cooler.
2 Disconnect the negative terminal on both batteries

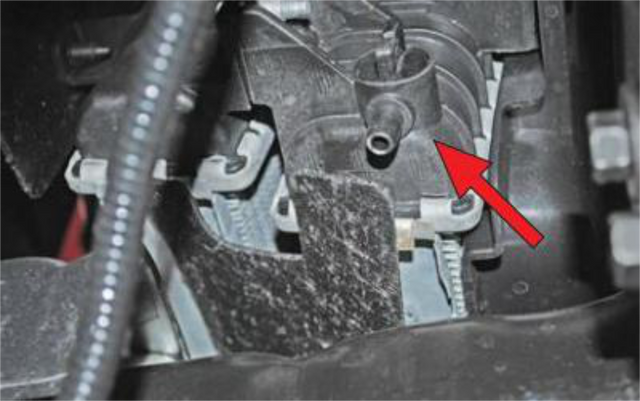

3 Drain about 3 gallons of coolant
From both the hot and cold sides of the radiator. Turn the drain a quarter turn counterclockwise, pull it outward, then turn it a further quarter turn counterclockwise.

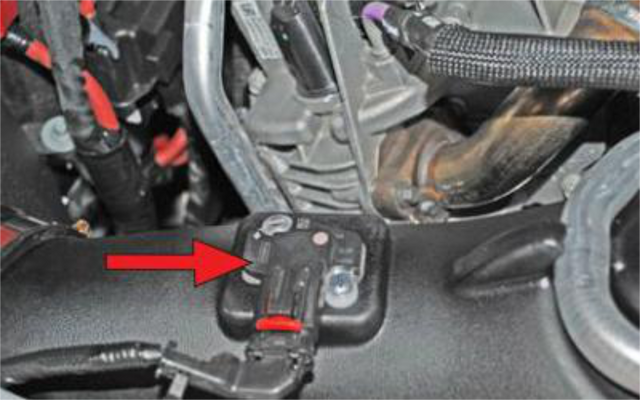

4 Unplug the MAF sensor on the intake
Release the red locking tab.

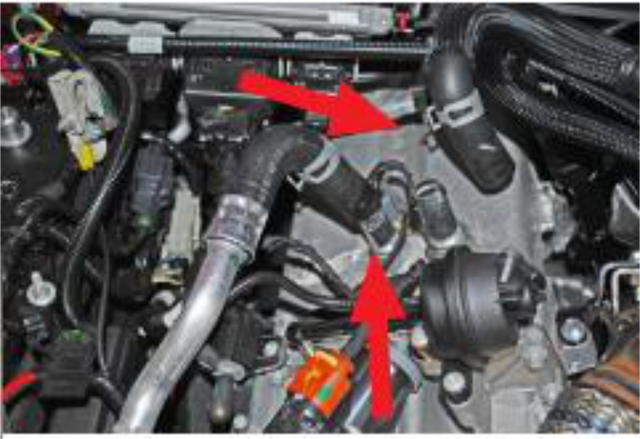

5 Unbolt the air intake resonator and air filter box
Two bolts, 8mm socket.
6 Loosen the two clamps on the intake pipe and remove it
Unclip the three coolant lines from the intake pipe first, then loosen the clamps and lift the pipe out.
7 Lift the air filter box off its rubber mounts
It pulls straight up.

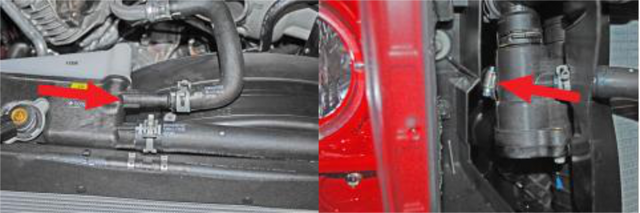

8 Disconnect the two 3/4" coolant hoses to the top of the EGR cooler
Release the hose clips and remove the hoses. It may be easier to remove the grille and the passenger side headlight to reach the lower connection where the EGR cooler hose meets the radiator.

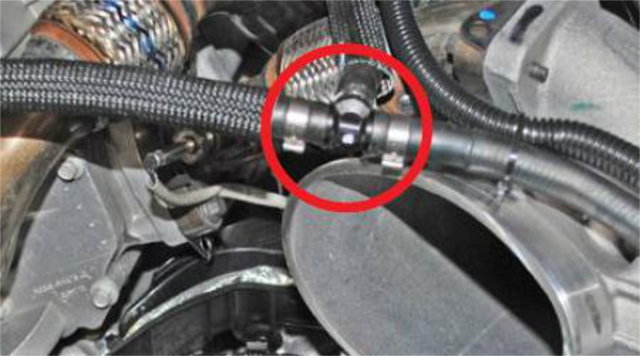

9 Replace the 5/16" coolant tee with the barbed coupler
Remove the three hose clamps on the 5/16" coolant hose and take the tee out. Fit the supplied 5/16" straight barbed fitting with two of the small stainless hose clamps.
2015–2016 trucks: use the supplied 3/8" barbed fitting and two small clamps instead, to join the two radiator overflow hoses.

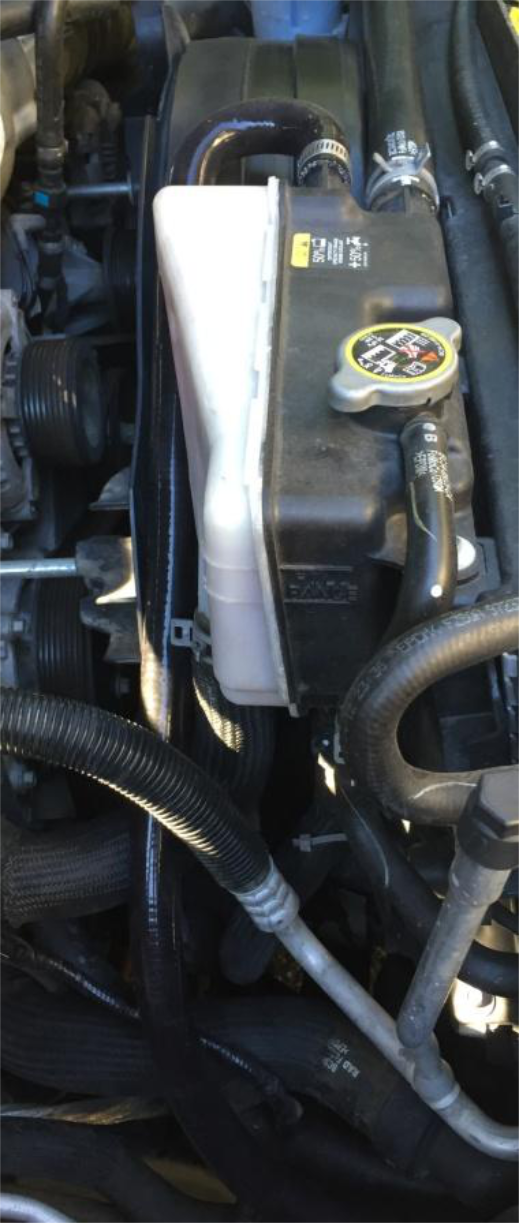

10 Fit the molded 3/4" silicone hose
It runs from the degas tank to the port near the bottom of the radiator that you disconnected in step 8. Secure it with the supplied large hose clamps.
11 Disconnect the quick-connect coolant line from the metal standpipe
The standpipe sits between the EGR cooler and the intake manifold.

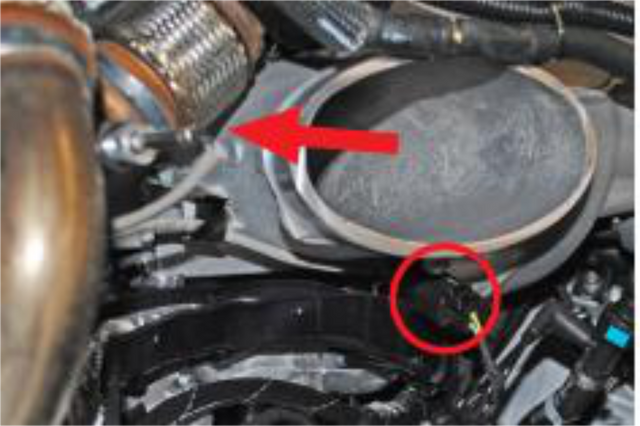

12 Disconnect the EGR temperature sensor and remove the short EGR pipe
14mm wrench for the sensor, 8mm socket for the pipe.

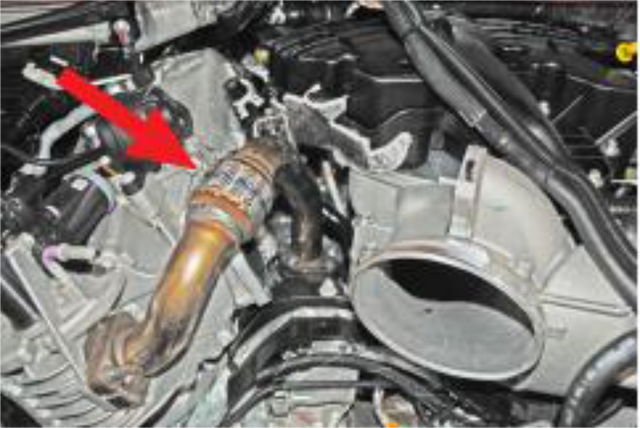

13 Remove the longer EGR pipe
Five 6mm bolts, 8mm socket.

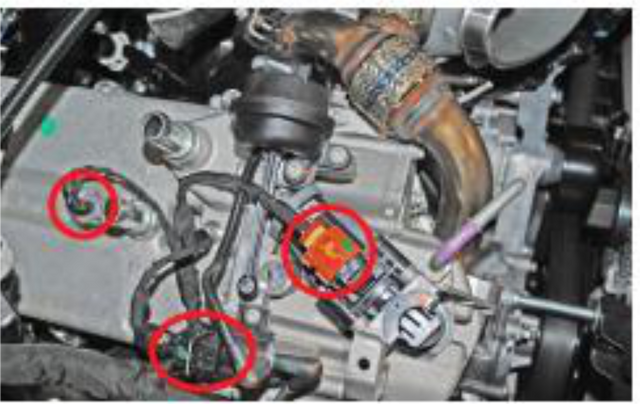

14 Unplug the harnesses on top of the EGR cooler and cap the vacuum line
Remove the 90-degree fitting first to free the vacuum hose, then fit the supplied vacuum hose cap. Zip-tie the harness back to the PCM harness so it is out of the way.
Also unplug the butterfly valve connector next to the fan shroud.

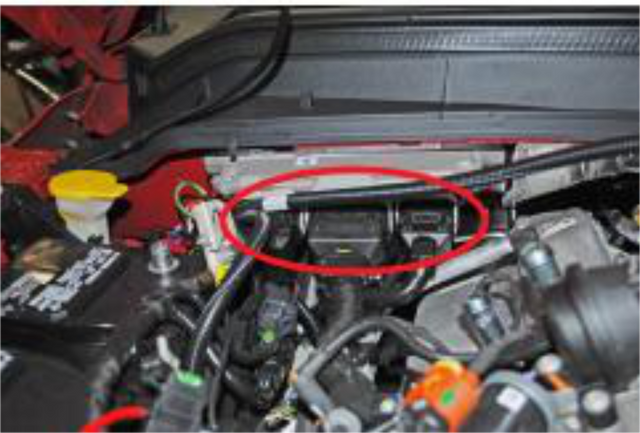

15 Unplug the PCM harness from the PCM
Secure it out of the way.

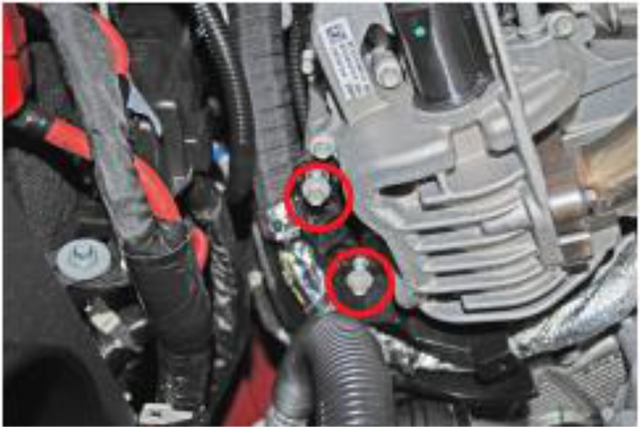

16 Remove the two bolts securing the wiring harness to the EGR cooler
8mm socket.

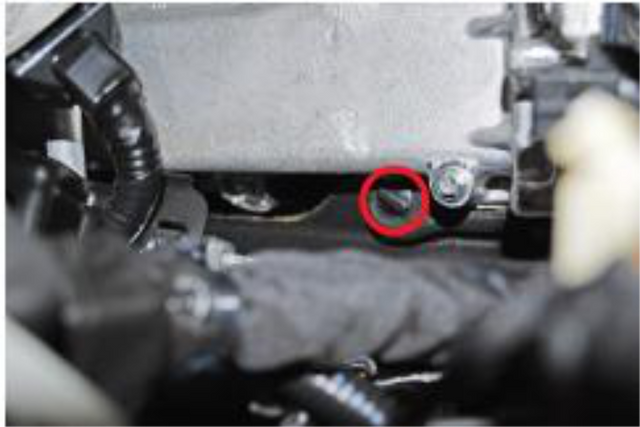

17 Remove the two clips on the heat shield
They are on the passenger side, under the EGR cooler.

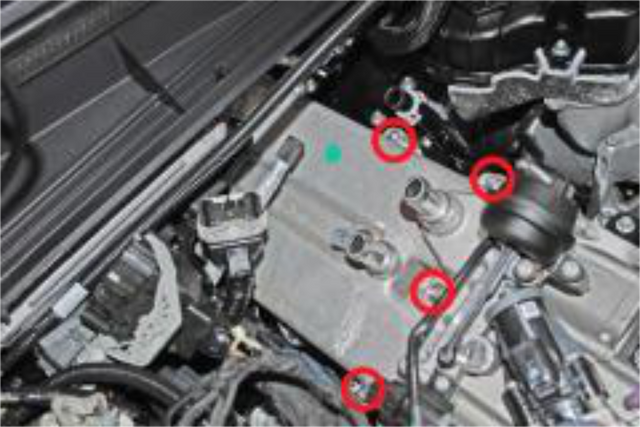

18 Remove the seven bolts that hold the EGR cooler in place
8mm socket.

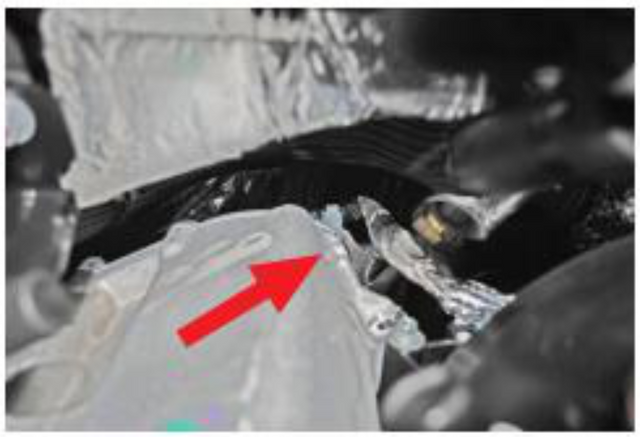

19 Remove the nut retaining the EBP hard line to the back of the cooler
10mm. On 2015–2016 trucks it is a 12mm.

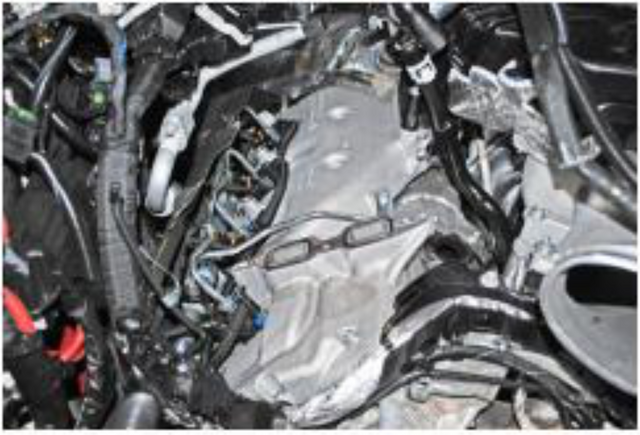

20 Remove the EGR cooler from the truck

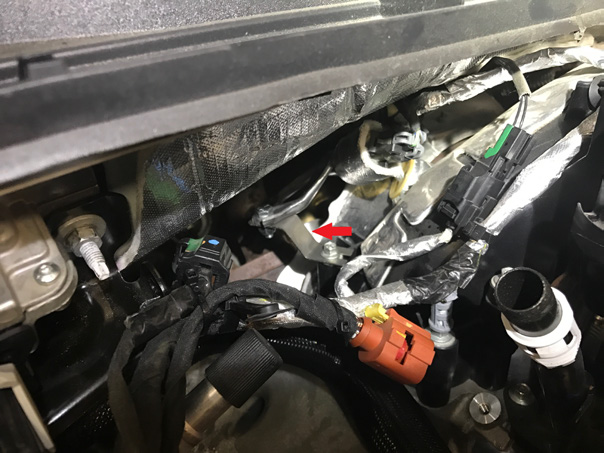

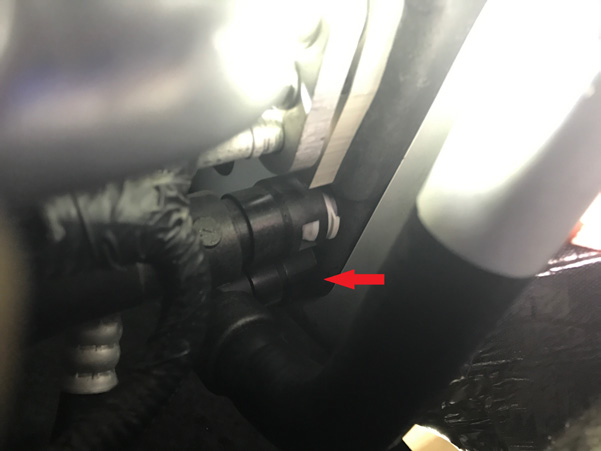

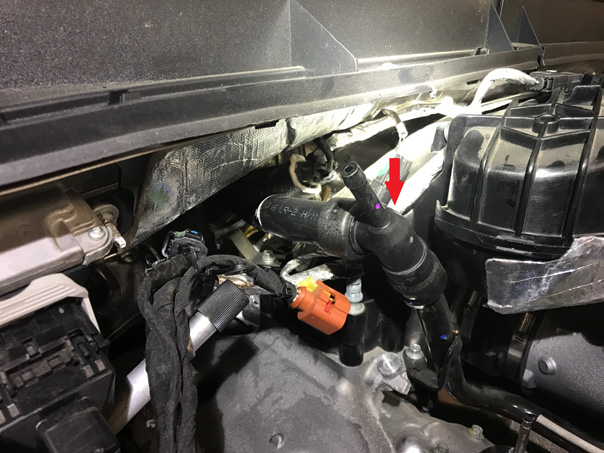

21 2015–2016 trucks: optionally swap the heater core hose
Replacing it with the 2011–2014 version keeps the coolant bleed line. It is not required.

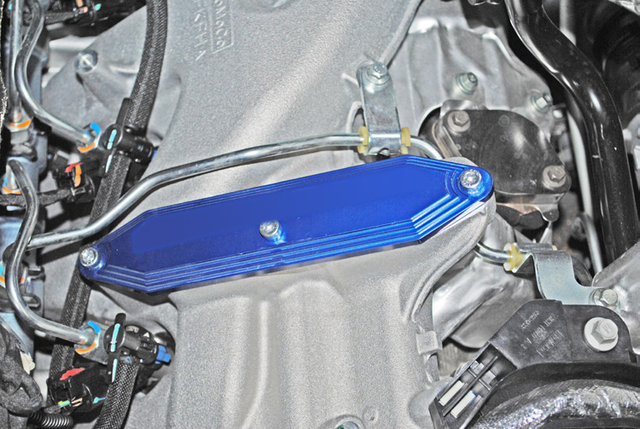

22 Install the exhaust manifold block off plate
Reuse the factory gasket, with two of the supplied M6 × 20mm bolts and a 5mm Allen wrench.
If you are not fitting an aftermarket 1/8" EGT probe, install the supplied EGT probe adapter with a 5/8" socket and one of the factory EGT sensors from the DPF system.

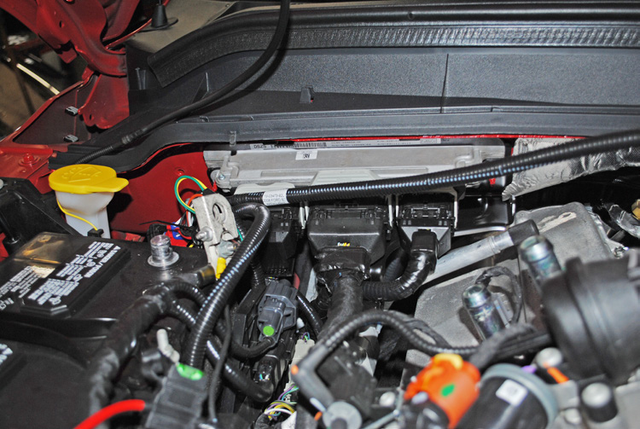

23 Install the EGR cooler pass-through plate
Three of the M6 × 30mm bolts, 5mm Allen wrench.

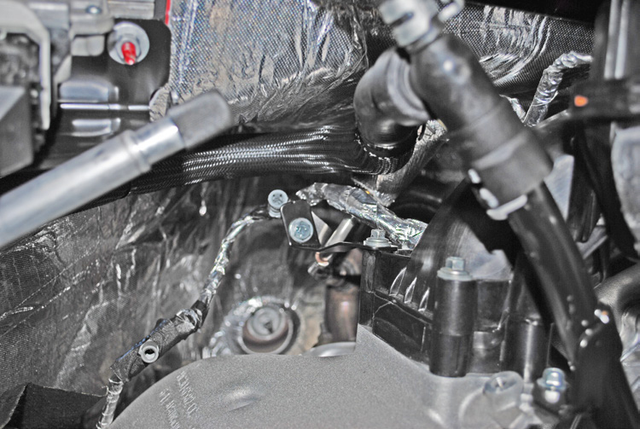

24 Install the intake manifold block off plate
Two of the supplied M6 × 20mm bolts with an Allen wrench. Make sure the O-ring is seated properly before fitting.

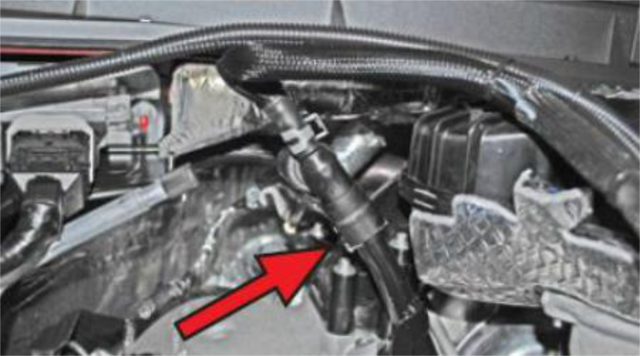

25 Reconnect the quick-connect coolant hose to the metal standpipe
If you did not already do it in step 9, remove the tee from the 5/16" coolant bleed line and fit the supplied brass barb now.

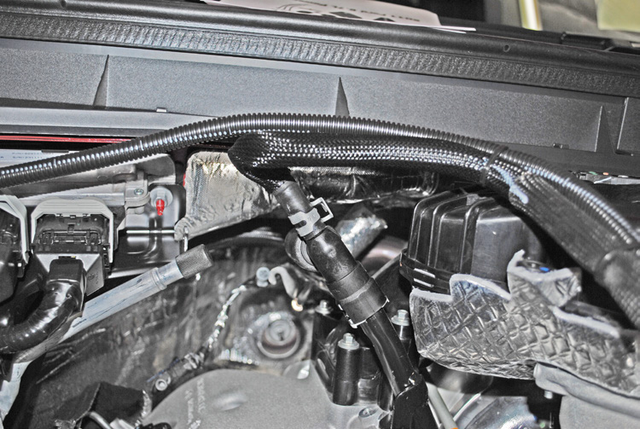

26 Reconnect the PCM harness
Make sure the plugs are fully seated.
27 Reinstall the intake components
28 Refill the coolant and check for leaks
Follow factory specifications. Run the engine and check for leaks. Once the truck reaches operating temperature, check the coolant level again and top up as needed.
