EGR DELETE — 16-19 TITAN XD 5.0L CUMMINS

40 MINEGR DELETE KIT29 STEPS

Removing the factory charge tube, EGR cooler, EGR bypass tube and Y-transfer tube on a 2016–2019 Nissan Titan XD 5.0L Cummins, and fitting the new transfer tube, charge tubes and air inlet tube from the kit. You may need coolant. Removing the EGR loses some; have coolant, drain pans and shop towels or kitty litter ready, or partially drain 1–2 gallons first. Tools: Phillips and flat head screwdrivers, 1/4" and 7mm sockets, 8mm, 10mm, 11mm and 13mm sockets, 10mm and 11mm deep well sockets, 5mm and 6mm hex sockets, T15 Torx bit, 8mm and 10mm ratcheting wrenches, 1" wrench, pry bar, rubber mallet, O-ring spoon or pick, Windex, zip ties. Kit: air intake charge tube, air outlet tube, air inlet tube, transfer tube, water transfer connection with hose, 45° black rubber elbow, 2 × 2.5" to 3" silicone reducers (131-06376-3401), 3" silicone coupler (131-07603-0401), CFT hardware kit, band clamps (5 × 87/79, 3 × 75/67), block off plate kit (11 bolts, 3 lock washers, 3 washers, 2 hose clamps, 4 O-rings, 2 plates, 1 plug), electrical block plugs. Optional gaskets sold separately: 61802, 61803, 73090.

Steps

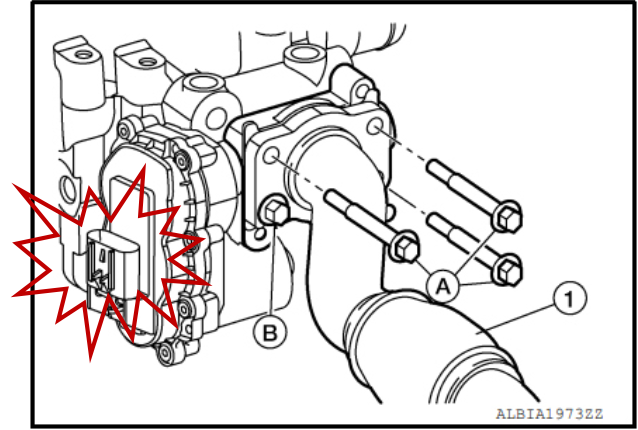

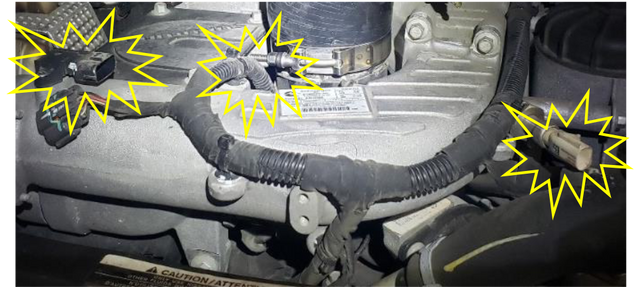

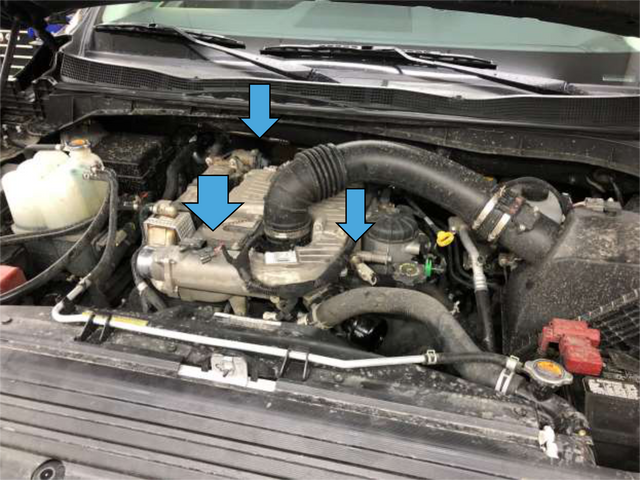

1 Disconnect the sensors on the factory charge tube

The charge-air cooler outlet pressure/temperature sensor on top, the EGR bypass connector near the bypass tube, and the intake manifold air temperature sensor on the right side. Cut the zip ties on the wire loom or pop its clips off the tube.

Disconnect the sensors on the factory charge tube Disconnect the sensors on the factory charge tube Disconnect the sensors on the factory charge tube

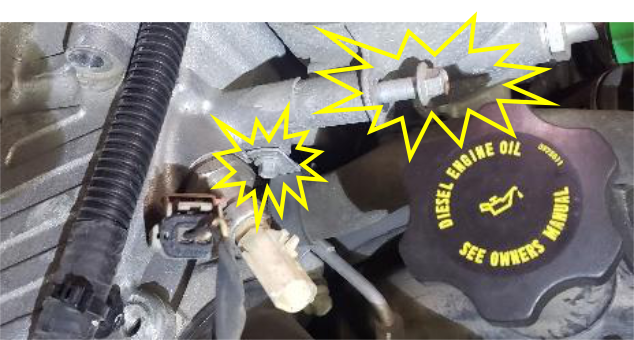

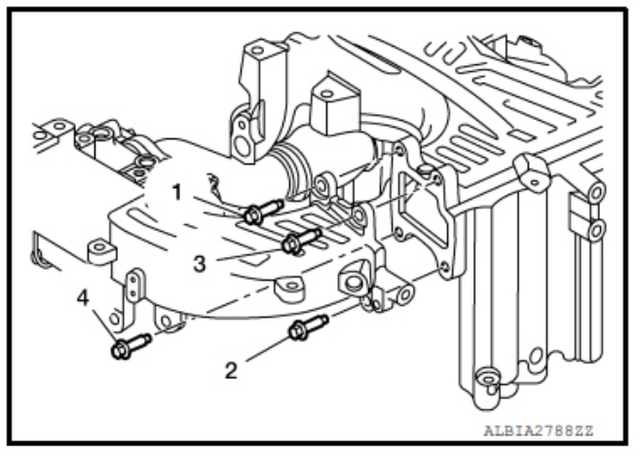

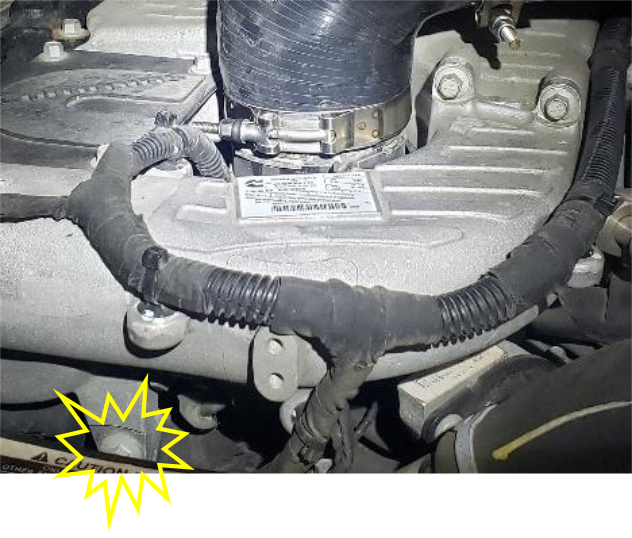

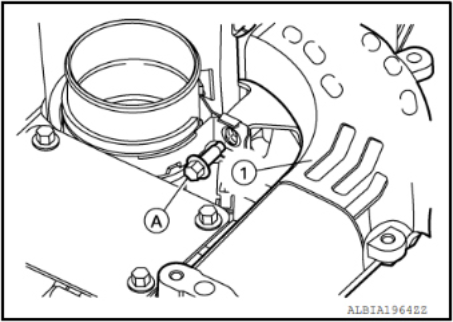

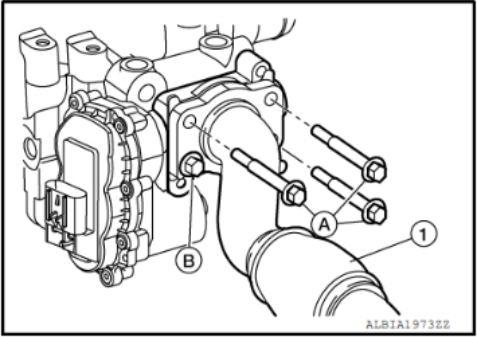

2 Unbolt the charge tube

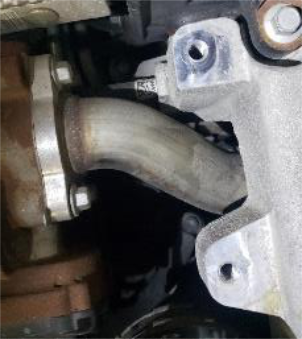

8mm: the bolt on the breather tube clamp to the lower right of the charge tube. 10mm: 1 bolt on the fuel filter housing, 1 bolt at the air inlet connection, 4 bolts holding the tube to the intake manifold, and 1 bolt under the tube holding its adapter to the block. 10mm socket or ratcheting wrench: the 4 bolts from the EGR bypass tube to the bypass valve, behind the charge tube and under the intake manifold.

Unbolt the charge tube Unbolt the charge tube Unbolt the charge tube Unbolt the charge tube Unbolt the charge tube Unbolt the charge tube

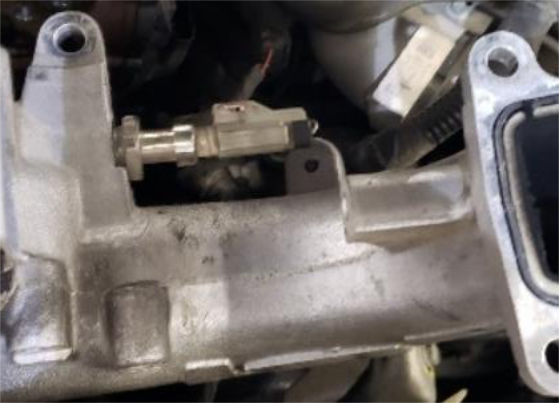

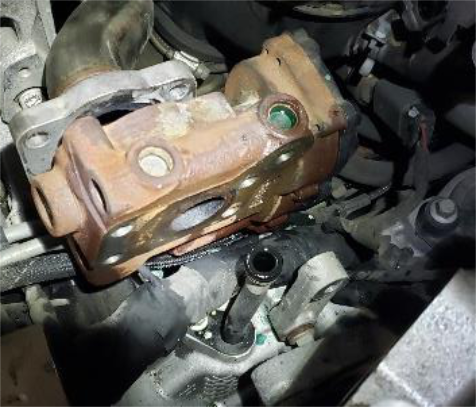

3 Lift the charge tube out

It is tough because of the small black tube underneath it, and one more sensor is still connected under there. Once the tube is free, rotate it toward you and disconnect the EGR temperature sensor.

Lift the charge tube out Lift the charge tube out

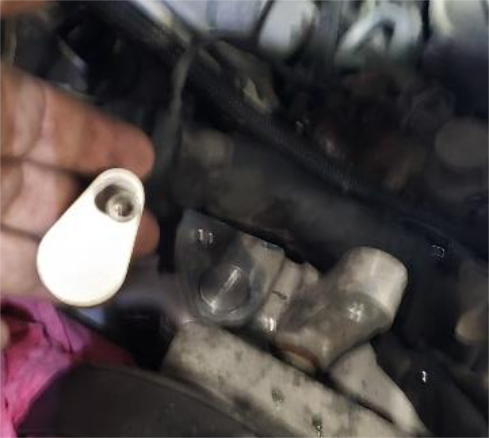

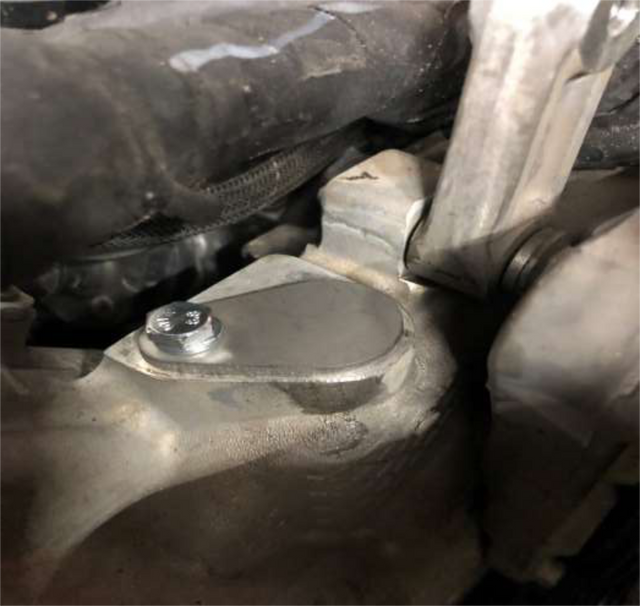

4 Remove the small black tube and fit the blocker plate

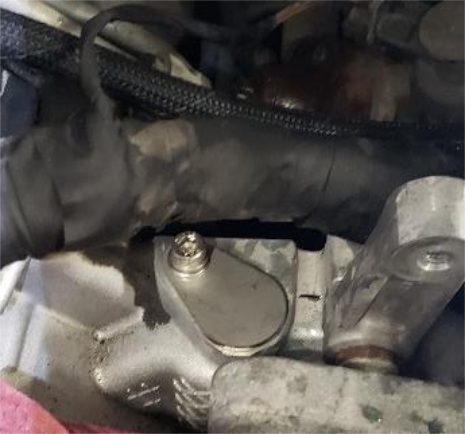

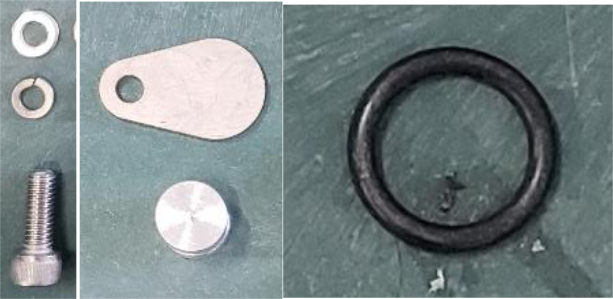

8mm socket to remove the black tube that went into the charge tube. 5mm hex socket to install the supplied O-ring, round blocker and blocker plate in its place.

Remove the small black tube and fit the blocker plate Remove the small black tube and fit the blocker plate Remove the small black tube and fit the blocker plate Remove the small black tube and fit the blocker plate

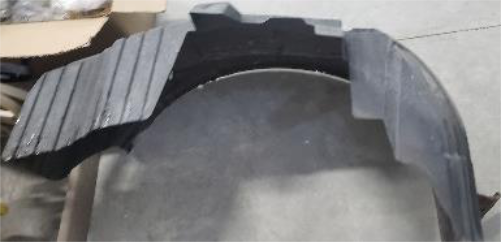

5 Remove the passenger side fender well

Phillips and flat head. 7 screws and 2 plastic push rivets, if yours still has them all. It makes everything on this side much easier to reach.

Remove the passenger side fender well

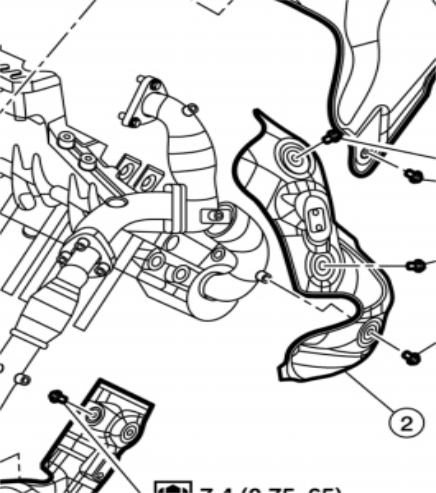

6 Remove the heat shield on the downpipe

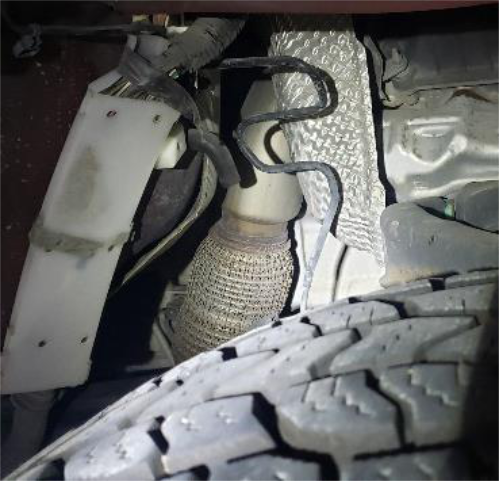

3 bolts, 8mm socket or ratcheting wrench.

Remove the heat shield on the downpipe Remove the heat shield on the downpipe

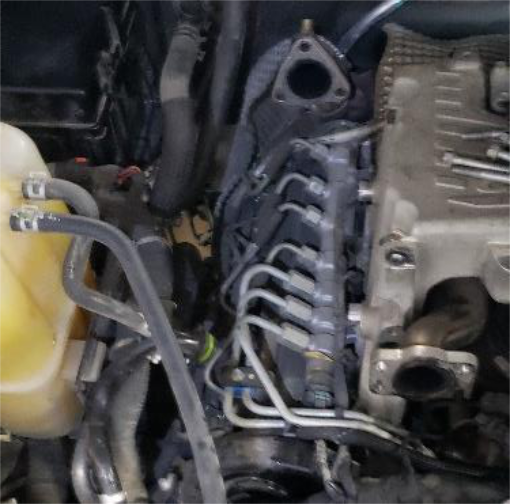

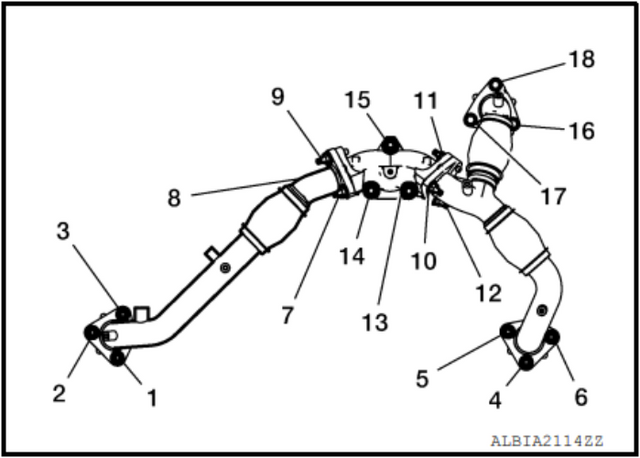

7 Unbolt the EGR from the Y downpipe

3 bolts on the back of the EGR, 10mm.

Unbolt the EGR from the Y downpipe Unbolt the EGR from the Y downpipe

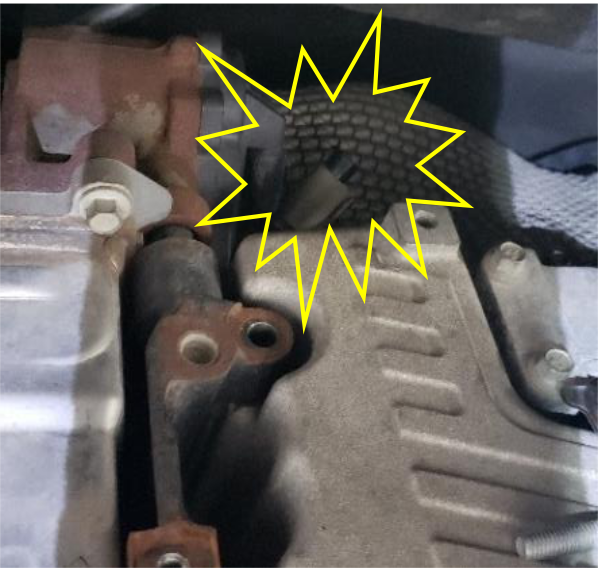

8 Disconnect the rear plug on the EGR and blank the truck side

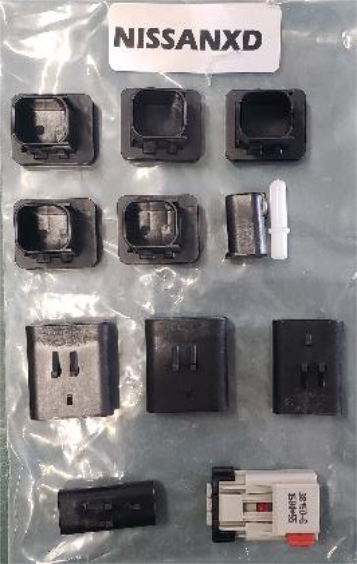

Fit one of the black dead plugs to the truck's connector. It is not used again.

Disconnect the rear plug on the EGR and blank the truck side Disconnect the rear plug on the EGR and blank the truck side

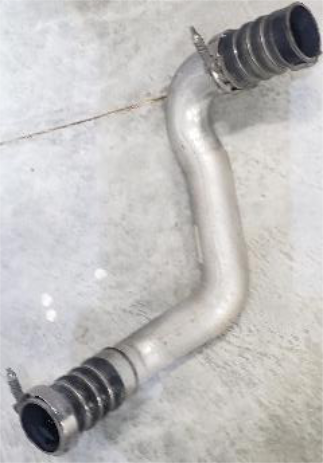

9 Remove the air outlet tube

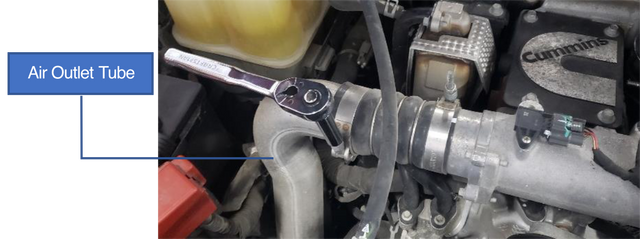

11mm deep well socket: loosen the top 2 band clamps on the rubber tubing to the air outlet tube, then the bottom 2 at the charge air cooler. An O-ring spoon or pick may be needed to separate the tubing.

Remove the air outlet tube Remove the air outlet tube

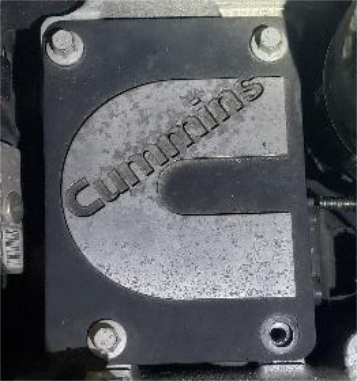

10 Remove the Cummins emblem from the intake manifold

4 bolts, 10mm.

Remove the Cummins emblem from the intake manifold

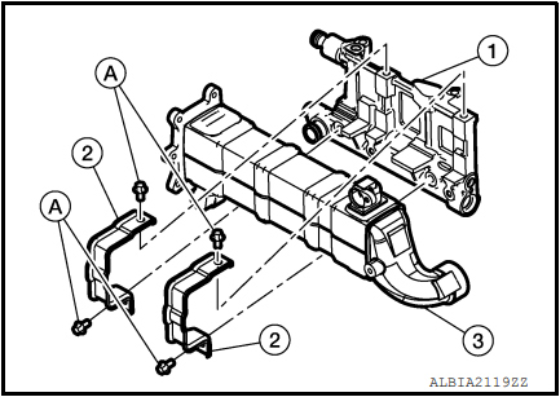

11 Unbolt the EGR cooler straps from the intake manifold

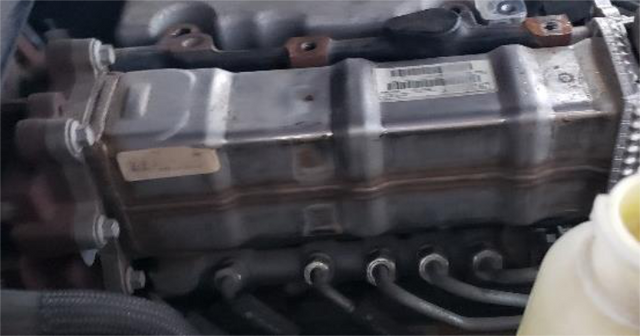

4 bolts, 10mm.

Unbolt the EGR cooler straps from the intake manifold Unbolt the EGR cooler straps from the intake manifold

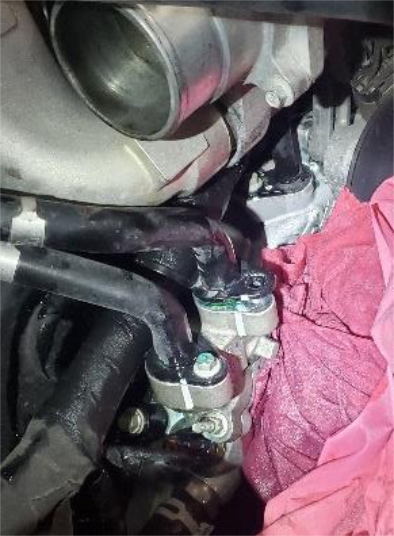

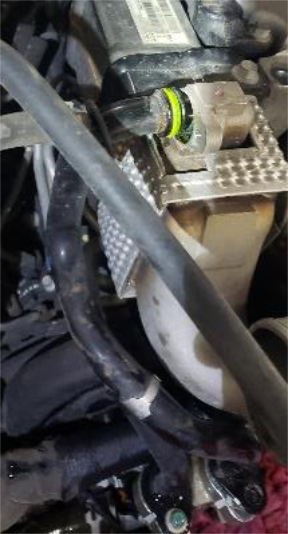

12 Disconnect the EGR cooler supply and return lines

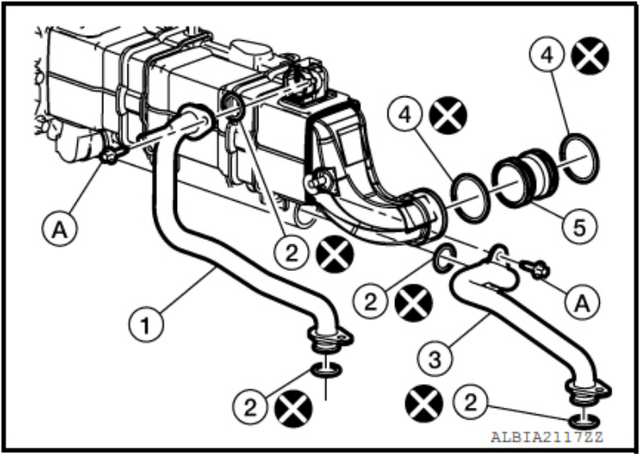

4 bolts, 8mm, at both ends. Rotate the supply lines out of the way for now if you can.

Disconnect the EGR cooler supply and return lines Disconnect the EGR cooler supply and return lines Disconnect the EGR cooler supply and return lines

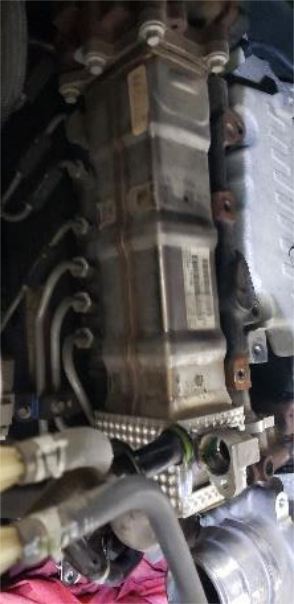

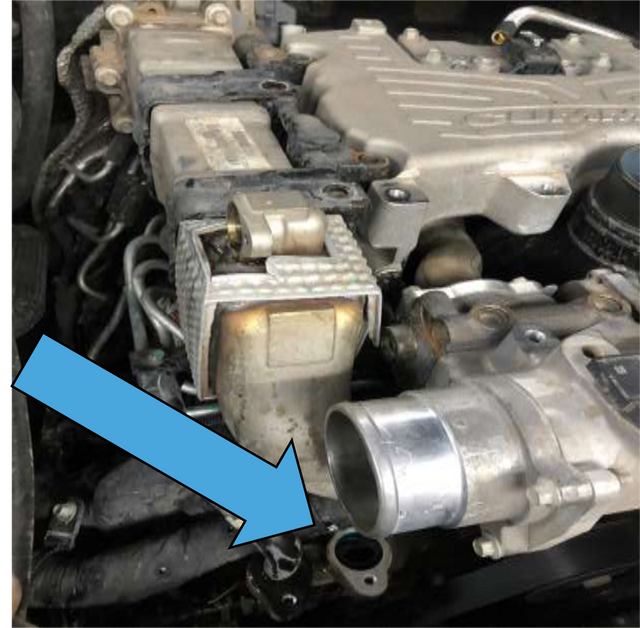

13 Pop the EGR cooler out

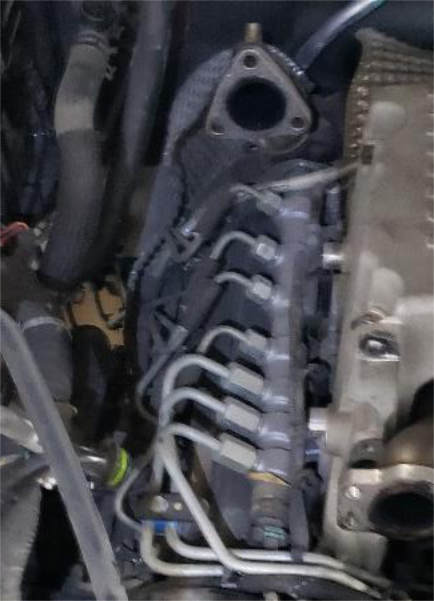

Pry bar and rubber mallet, working it away from the intake manifold and charge tube until you find the spot that lets it come free. It is heavy; a second pair of hands helps.

Pop the EGR cooler out Pop the EGR cooler out Pop the EGR cooler out
14 Remove the EGR supply lines and the old reservoir tubing

This is where it gets messy. Have the coolant catch ready.

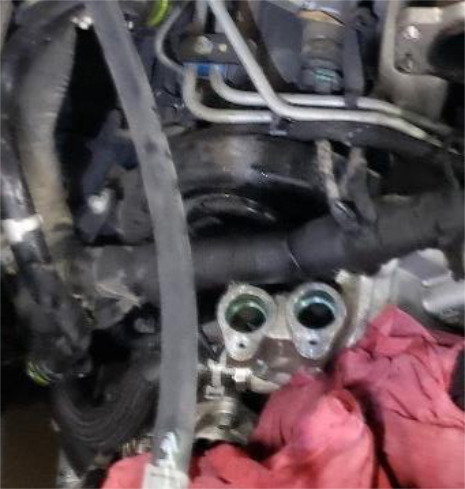

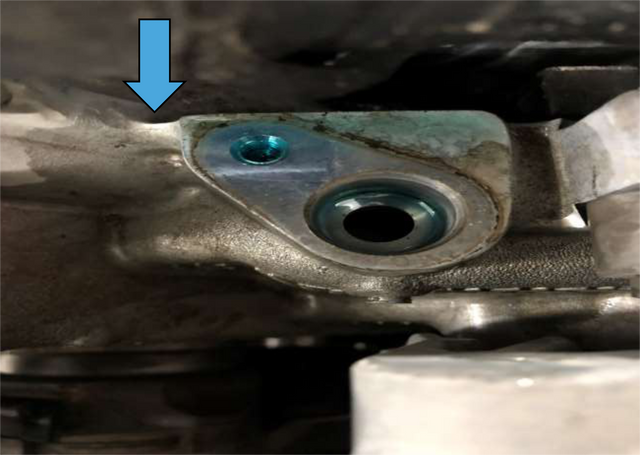

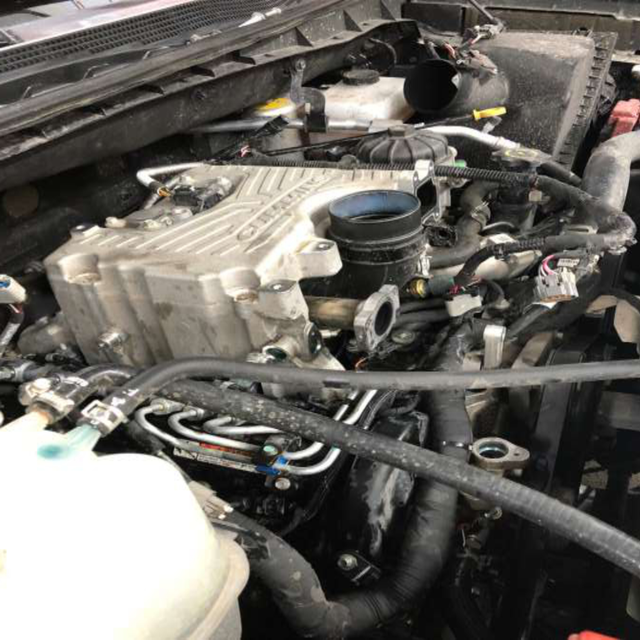

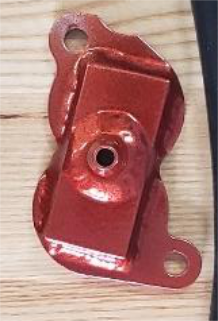

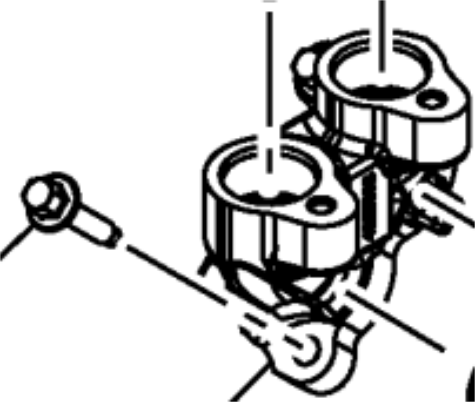

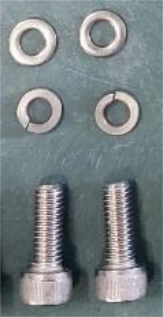

15 Replace the water transfer connection

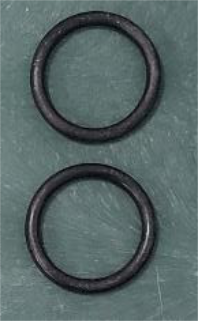

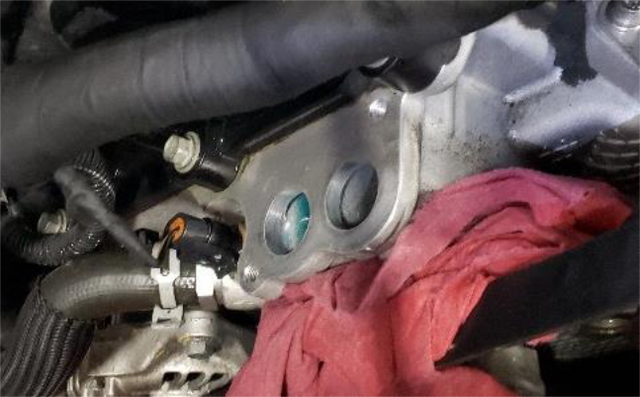

8mm to remove the 2 bolts on the old connection; draw the coolant out with a syringe if you have one and clean the area thoroughly. Fit the new connection with its 2 O-rings seated properly, using the 2 new bolts, lock washers and washers, tightened with a 5mm hex socket. Connect the new hose from it to the coolant reservoir with 2 hose clamps, tightened with a 1/4" socket.

Clean and dry the block face and the plate before fitting. If your kit came with RTV, add a thin bead as well for extra seal.

Replace the water transfer connection Replace the water transfer connection Replace the water transfer connection Replace the water transfer connection Replace the water transfer connection Replace the water transfer connection Replace the water transfer connection Replace the water transfer connection

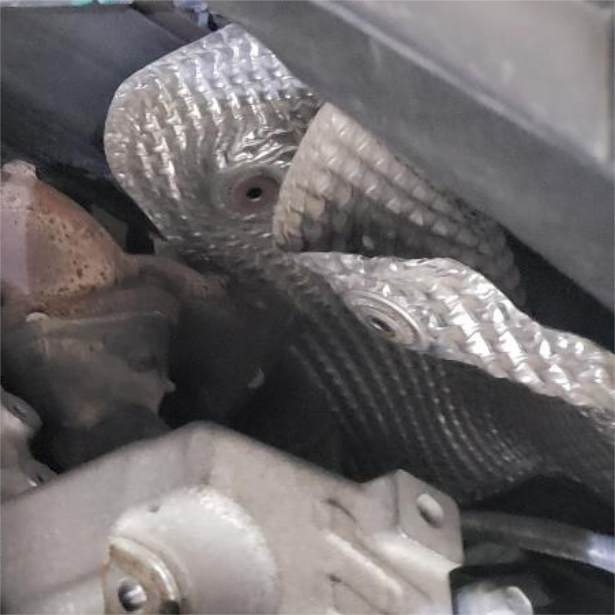

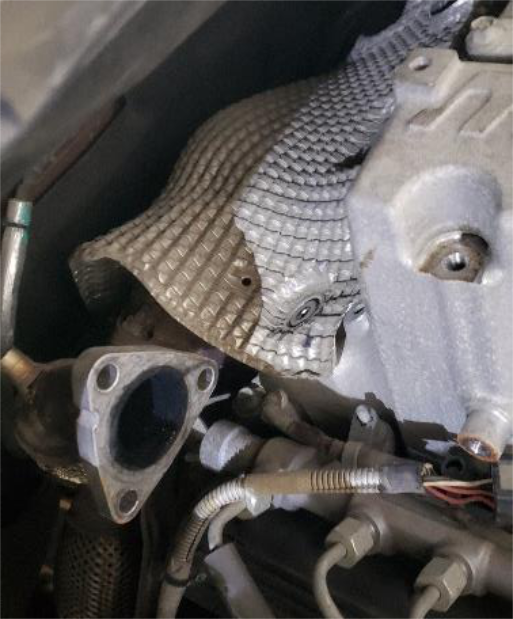

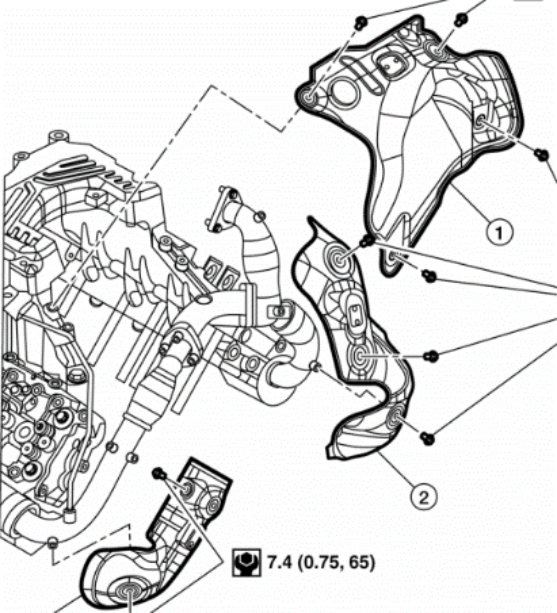

16 Swing the large rear heat shield out of the way

Remove 3 of its 4 bolts (8mm socket or ratcheting wrench) and loosen the fourth if you cannot reach it, then rotate the shield aside.

Swing the large rear heat shield out of the way Swing the large rear heat shield out of the way Swing the large rear heat shield out of the way

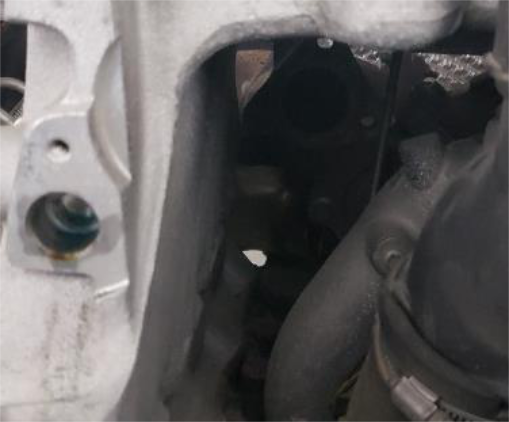

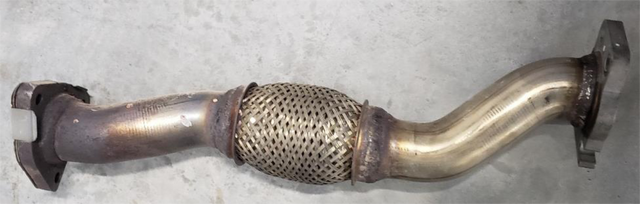

17 Remove the EGR bypass tube

Reach under the intake manifold and remove the 3 bolts, 10mm. Pull the tube out from under the manifold.

Remove the EGR bypass tube Remove the EGR bypass tube

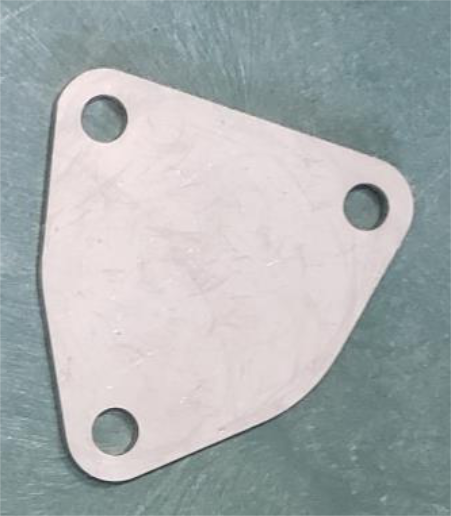

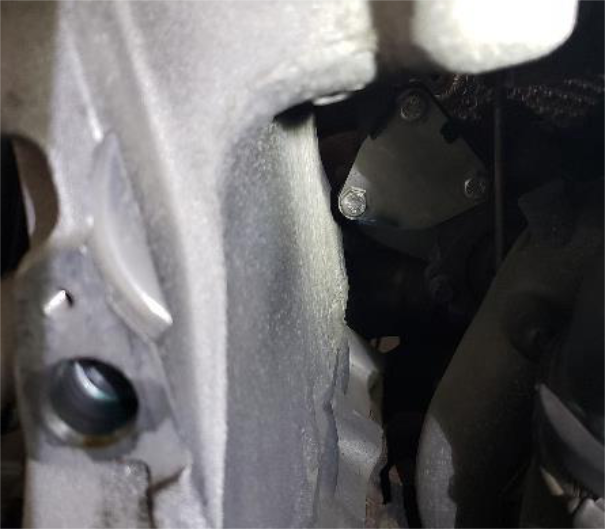

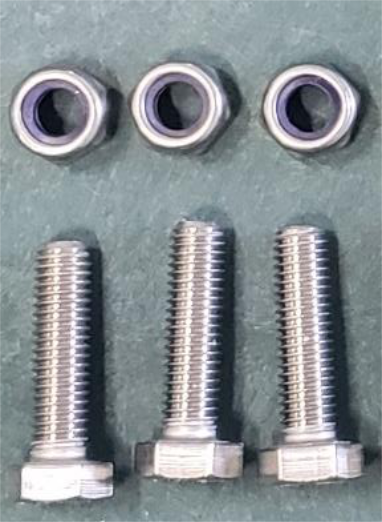

18 Install the block off plate

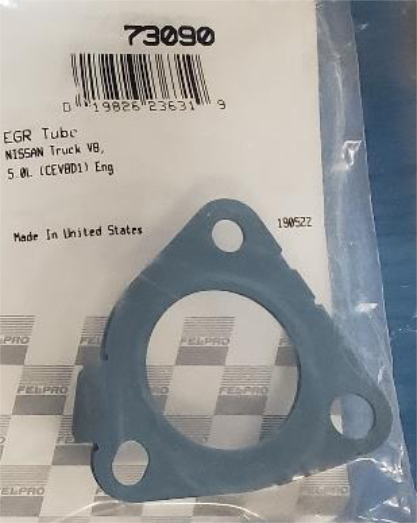

3 bolts and nylon nuts from the kit, 13mm. If the gasket was damaged on removal, replace it with P/N 73090.

Install the block off plate Install the block off plate Install the block off plate Install the block off plate

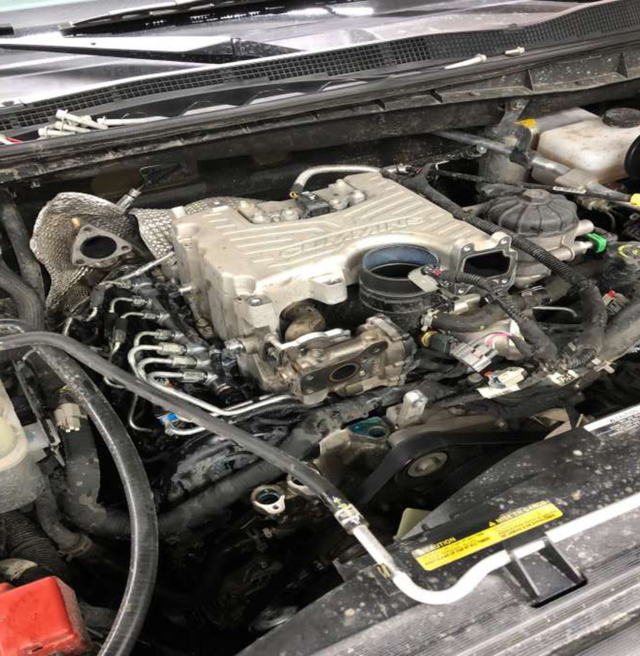

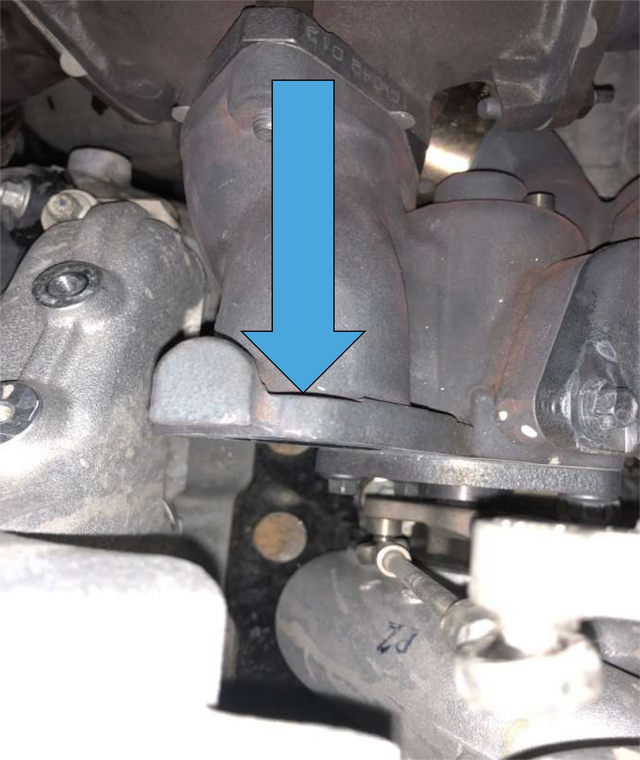

19 Remove the Y-transfer tube

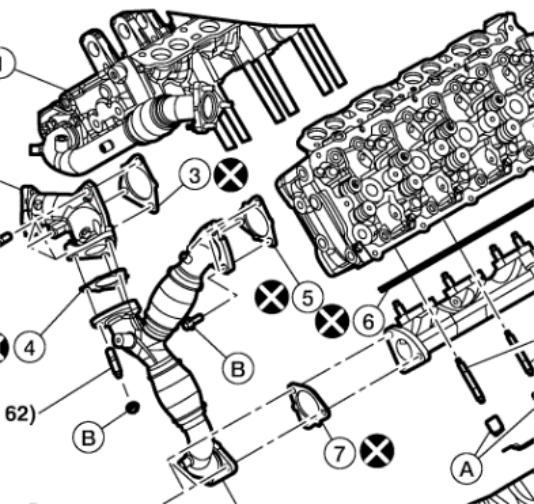

13mm: the 3 nuts holding the top of the tube to the exhaust manifold collector pipe, and the 3 nuts holding the bottom to the passenger side exhaust manifold. A pry bar may be needed to pop the bottom out.

Remove the Y-transfer tube Remove the Y-transfer tube Remove the Y-transfer tube

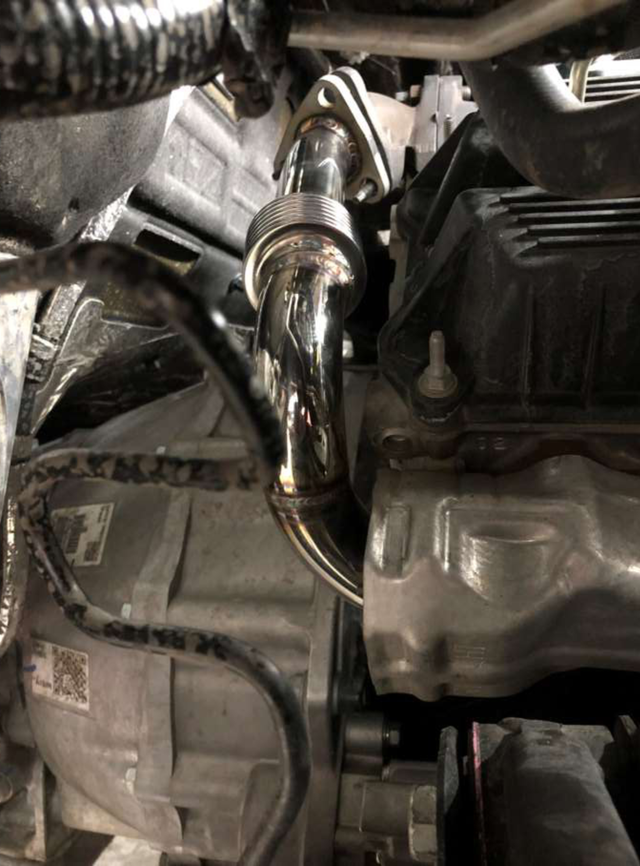

20 Install the new transfer tube and refit the heat shield

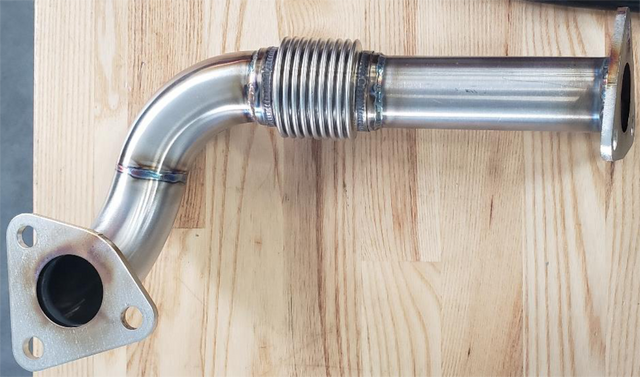

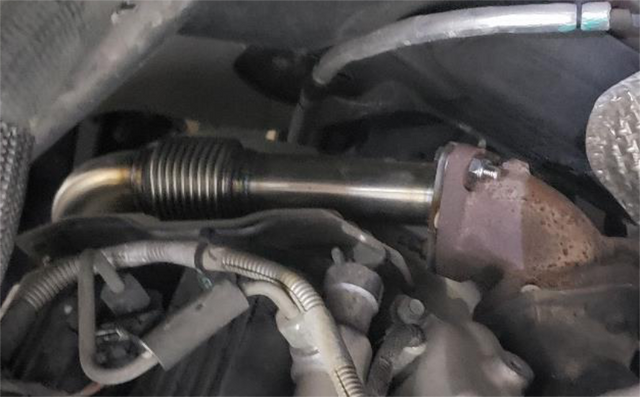

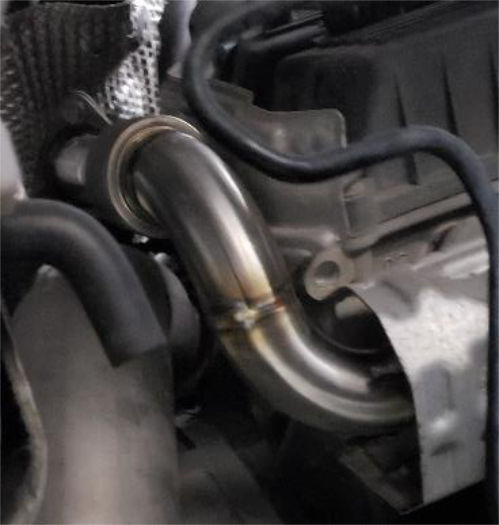

Reuse 5 of the 6 old nuts (13mm), and use the supplied bolt and nylon nut at the top where it meets the collector pipe. Bend the large heat shield back down and refit its 3 bolts (8mm); make sure all 4 are tight.

Install the new transfer tube and refit the heat shield Install the new transfer tube and refit the heat shield Install the new transfer tube and refit the heat shield Install the new transfer tube and refit the heat shield

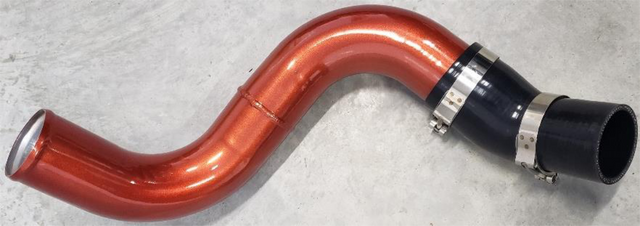

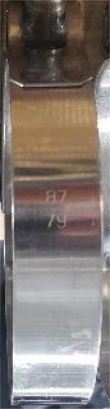

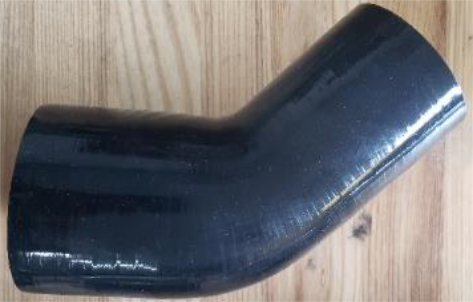

21 Prepare the new S-shaped air outlet tube

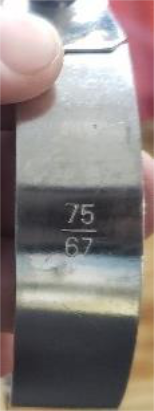

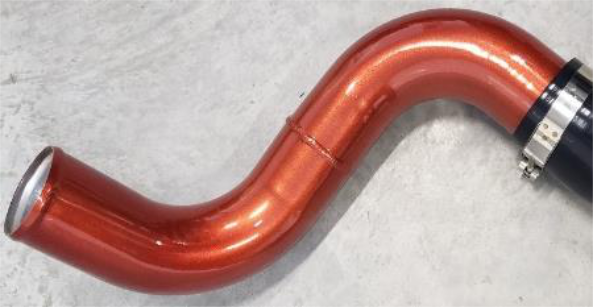

Fit the 45° 2.5" to 3" black rubber elbow to the tube; either side works. Put a 75/67 band clamp on the 2.5" end that goes to the truck inlet and an 87/79 clamp on the 3" end. Do not tighten either; adjustments come later.

Prepare the new S-shaped air outlet tube Prepare the new S-shaped air outlet tube Prepare the new S-shaped air outlet tube Prepare the new S-shaped air outlet tube Prepare the new S-shaped air outlet tube

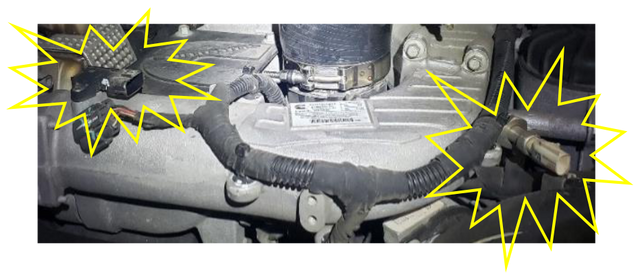

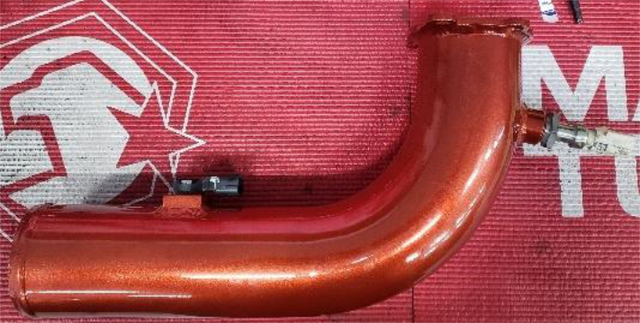

22 Move the two sensors onto the new charge tube

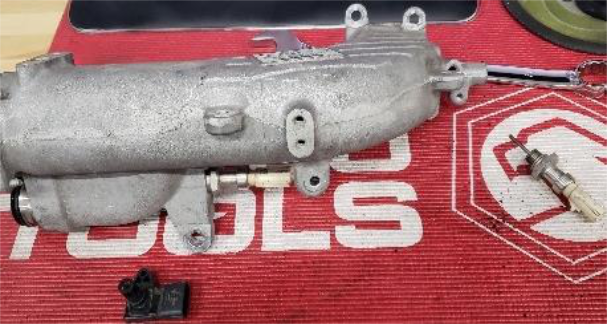

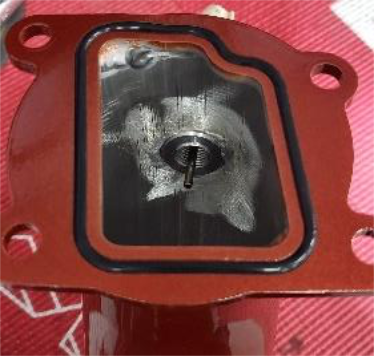

T15 bit to remove the charge-air cooler outlet pressure/temperature sensor; 1" wrench to remove the intake manifold air temperature sensor (P/N 2872658). Be gentle if you clean them. Fit the temperature sensor to the new tube with the 1" wrench, and the pressure/temperature sensor with the supplied hardware and a 7mm socket. Do not reuse the T15 stock hardware: it is too long. Press the big O-ring into the end of the new charge tube; it starts round and has to be formed into the groove.

If your kit came with RTV rather than an O-ring, make the gasket on the charge tube flange with the RTV instead.

Move the two sensors onto the new charge tube Move the two sensors onto the new charge tube Move the two sensors onto the new charge tube Move the two sensors onto the new charge tube

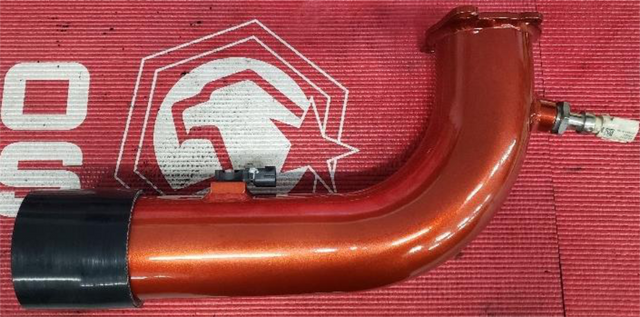

23 Fit the air outlet tube and 3" coupler, loose

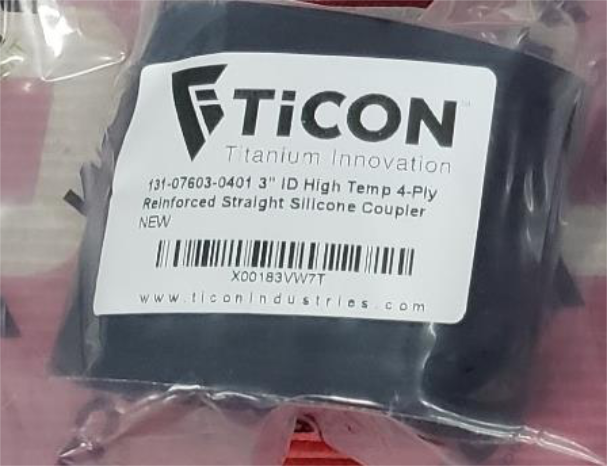

Push the air outlet tube onto the lower end of the charge air cooler, with Windex inside to help. Put 2 × 87/79 band clamps on the 3" silicone coupler (P/N 131-07603-0401), spray Windex on its end and twist it onto the outlet tube. Align so the far end meets the intake manifold. Do not tighten the clamps yet.

Fit the air outlet tube and 3" coupler, loose Fit the air outlet tube and 3" coupler, loose

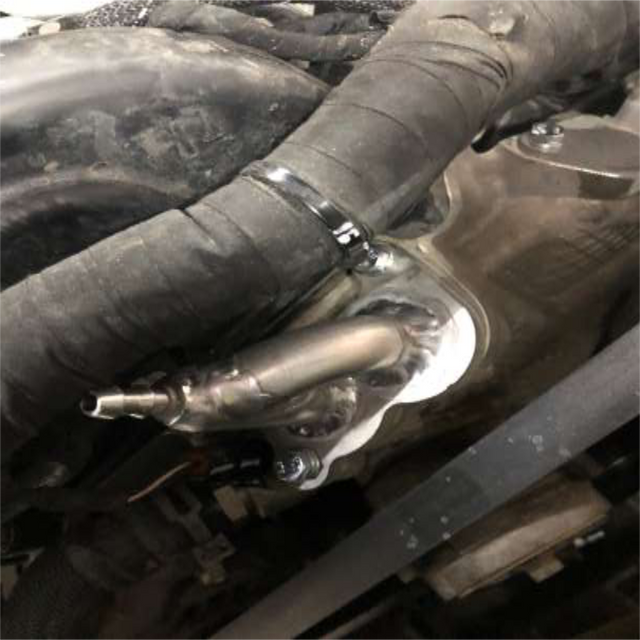

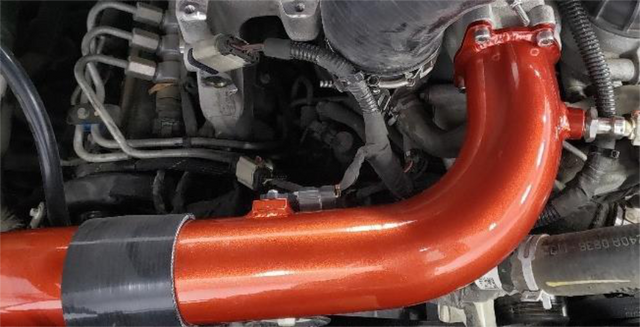

24 Bolt the charge tube to the manifold and lock the clamps

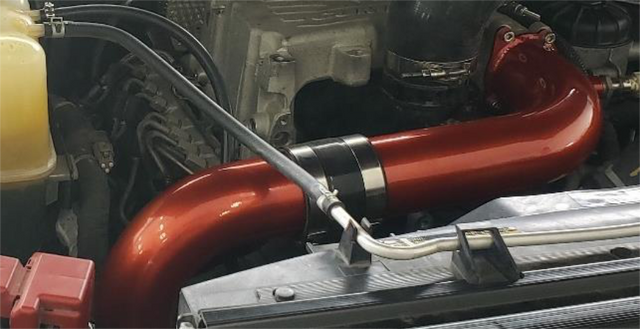

6mm hex socket for the 4 supplied bolts into the intake manifold. Then tighten the band clamps with a 10mm socket, making sure none sits on a lip of the tube.

Bolt the charge tube to the manifold and lock the clamps Bolt the charge tube to the manifold and lock the clamps Bolt the charge tube to the manifold and lock the clamps

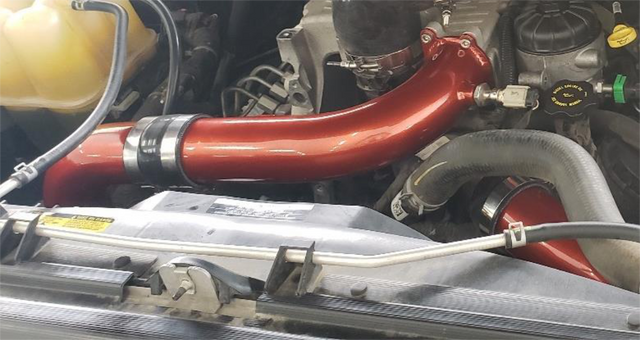

25 Reconnect the sensors and cap the unused connectors

Remove the oil filler cap for clearance and reconnect both sensor connectors. Fit 2 black dead caps to the 2 remaining unused connectors and zip-tie them away to the harness. Tighten the remaining bolts and clamps and tidy loose ends.

Reconnect the sensors and cap the unused connectors Reconnect the sensors and cap the unused connectors

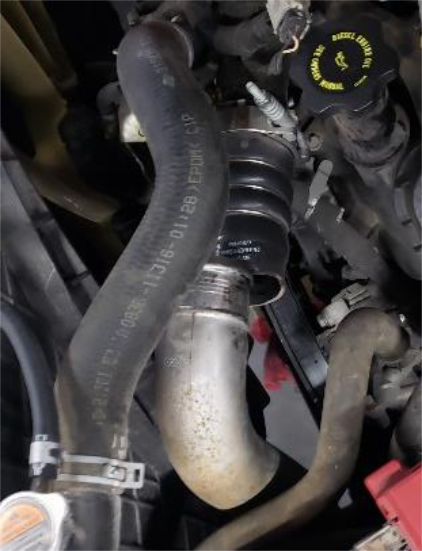

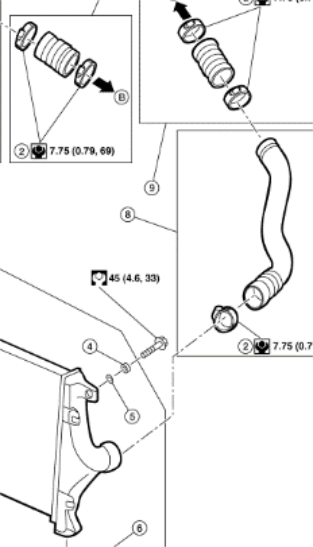

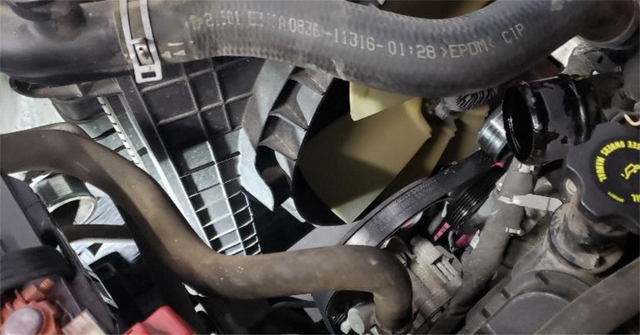

26 Remove the old air inlet hose

11mm deep well socket to loosen its 3 band clamps. Remove the pipe, clamps and silicone coupler.

Remove the old air inlet hose Remove the old air inlet hose Remove the old air inlet hose

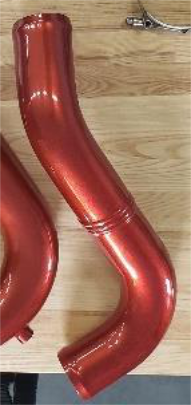

27 Fit the reducers and clamps to the new inlet tube, loose

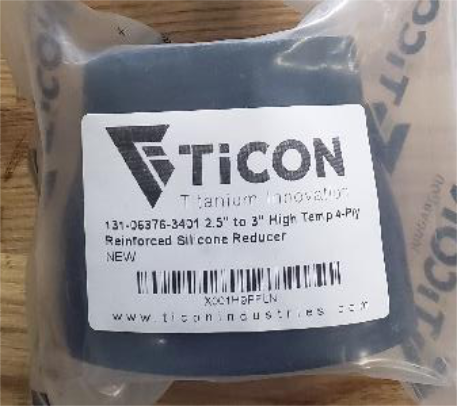

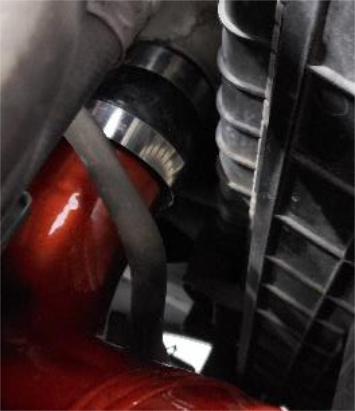

Fit a 2.5" to 3" silicone reducer (P/N 131-06376-3401) to the bottom end of the tube first, then the other to the engine side, with Windex to help. Engine side: 75/67 clamp first, then 87/79. Bottom: 87/79 first, then 75/67. Do not tighten.

Fit the reducers and clamps to the new inlet tube, loose Fit the reducers and clamps to the new inlet tube, loose Fit the reducers and clamps to the new inlet tube, loose

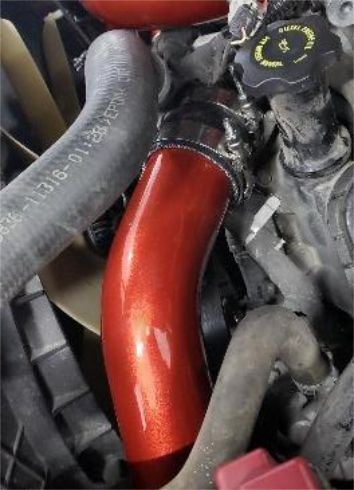

28 Install the air inlet tube

The 90° bend goes at the bottom of the charge air cooler. Work the tube down the engine bay and align the top end first; do not try to attach the bottom first. Once the top is on, align the bottom and seat its reducer on the fitting, then slide the top reducer over the top of the tube. Tighten all 4 clamps with a 10mm deep well socket.

Install the air inlet tube
29 Refill the coolant

Top the system back up to replace what came out with the EGR cooler and its lines. Reconnect the batteries, start the truck and check for leaks at the transfer connection, the new hose and the charge tubes.
